Heat transfer system & Materials / Welcome

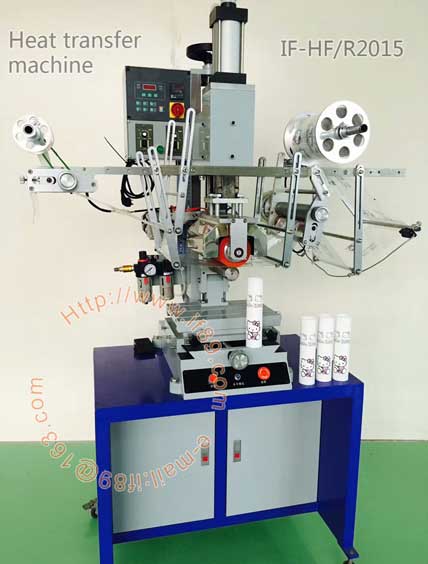

Heat transfer machine- Flat face/ Circle face using
Product ID:IF-HF/R2015
Description
■ parameter | |
Rubber Roller Size | L200mm*ø100 |
Work max Length | 200mm |
Work max Diameter | ø150mm |
Heat Print Temperature Range | Room 0-280°C |
Heat transfer film Max width | 250mm |
Max work speed | 800pcs/Hr |
Power supply | 220v/110v 50/60Hz |
Heat wattage | 2500w |
Air source pressure | 6Bar |
Body Dimension | L550*W1355*H1798mm |
Package Dimension | L810*W1300*H1950mm |
Net weight | 332kg |
Package weight | 420kg |
■ comment: | |
1. Stamping pressure, temperature, speed can be adjusted. 2. Worktable can be manually move back and forth and rotate adjustment. 3. Automatic thermal transfer film feeder can be adjusted. 4. Adjustable transferring time for thermal transfer film. 5.Adjustable printing height,pressure, temperature and speed. 6. Using lubricating device to make shuttle more stable during stamping process. 7.Advanced safety features. | |
